The dropped beat

In recent months, I have had a considerable number questions about Holter and ECG reports where the diagnosis of Wenckebach second degree AV block and non-conducted atrial ectopics has been raised. Each has its own distinctive footprints and only rarely is the distinction and thus the diagnosis, confusing.

The ECG footprints of a typical Wenckebach sequence

1        Progressive prolongation of the PR interval culminating in a non-conducted P wave

•      AV node progressively fatigues until block

•      AV node rests and conduction returns

image 1.jpg

2        The PR interval is longest immediately before the dropped beat.

3        The PR interval is shortest immediately after the dropped beat.

image 2.jpg

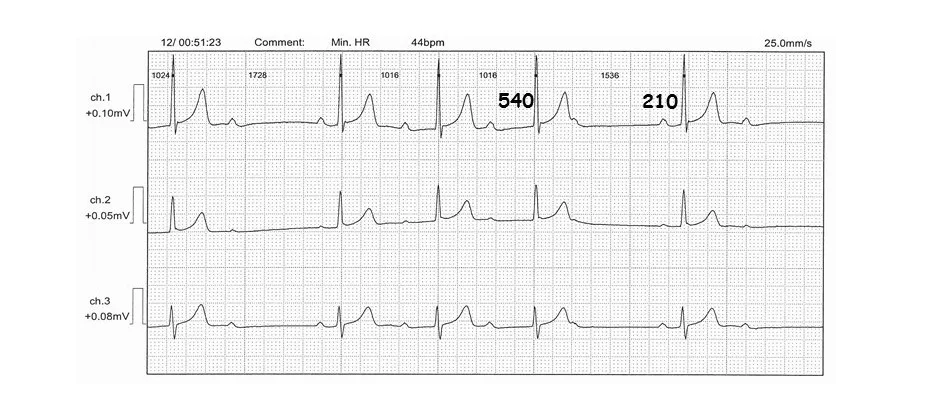

4        Greatest increase in PR interval is typically between the first and second beat with the “increment increase” of each conducted beat becoming shorter.

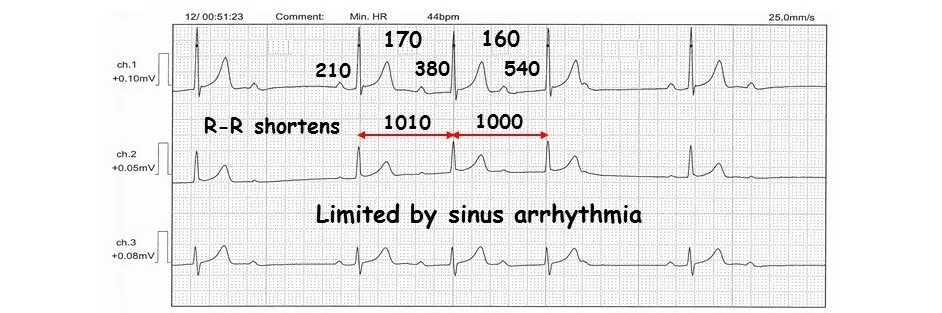

5         The R-R interval progressively shortens with each beat of the sequence.

image 3.jpg

Footprints 4 and 5 occur only with typical sequences, which is actually uncommon. An explanation can be found in the enclosed reference. Atypical Wenckebach sequences are the norm and in particular occur overnight in the young and are vagal mediated.

Here are a few examples:

The Wenckebach sequence has the greatest increment in the PR interval prior to the dropped beat

image 4.jpg

In this example the timings almost obliterate the pause from the dropped beat.

The most common scenario, however, is the combination of sinus slowing (right vagus) with Wenckebach block (left vagus) which typically occurs in the young.

image 5.jpg

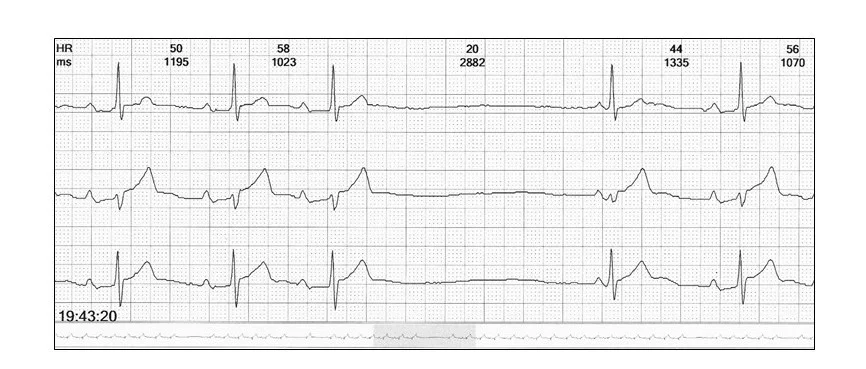

The vagal stimulation may also result in sinus arrest.

Image 6.jpg

Or a junctional escape beat following the pause.

image 7.jpg

A Wenckebach AV sequence can also occur with a low atrial rhythm.

image 8.jpg



What about non-conducted atrial ectopics?

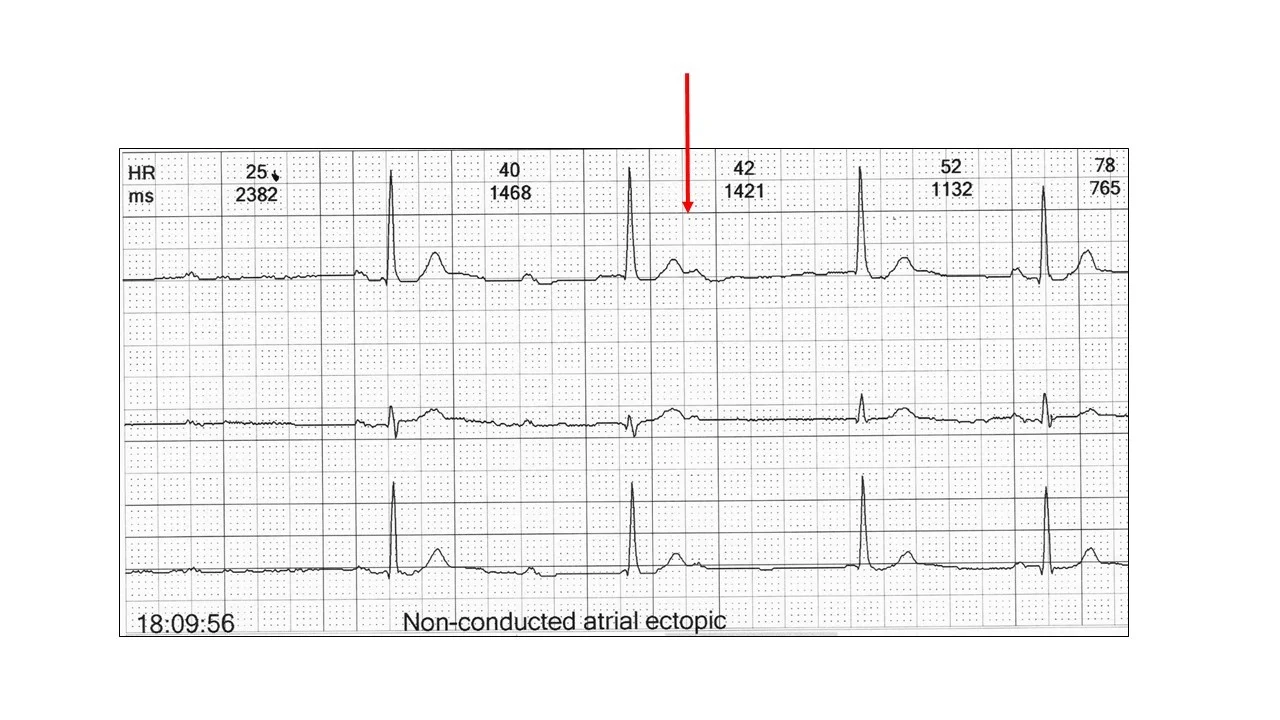

Non-conducted atrial ectopics The P wave of a non-conducted atrial ectopic is premature and is the commonest cause of a pause. In this example the the P wave is similar to the sinus beat; originates from the crista-terminalis adjacent to the sinus node.

image 9.jpg

However, the atrial site can be anywhere in the atrium or junctional tissue.

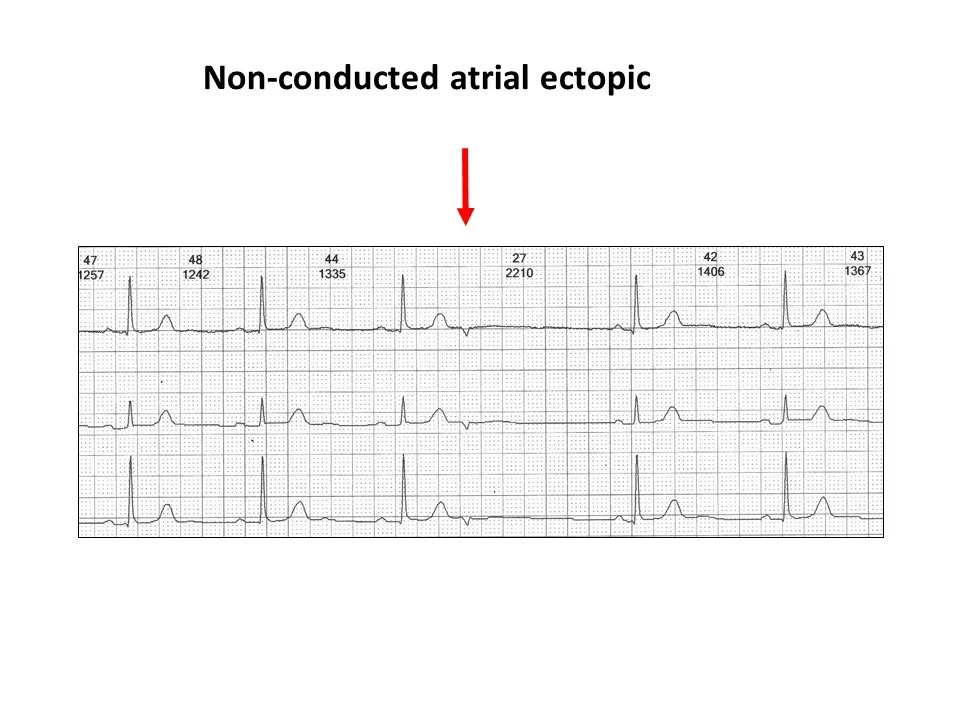

image 10.jpg

Non-conducted atrial ectopics can occur in bigeminy

image 11.jpg

They mimic 2:1 AV block. The ectopic P waves differ frrom the sinus beats.

image 12.jpg

The differential diagnosis is ventriculophasic sinus arrhythmia (look it up!).

Frequently the ectopic P waves are concealed creating a pause without a cause!

image 13.jpg

Not infrequently a Wenckebach sequence is terminated by a non-conducted atrial ectopic.

image 14.jpg

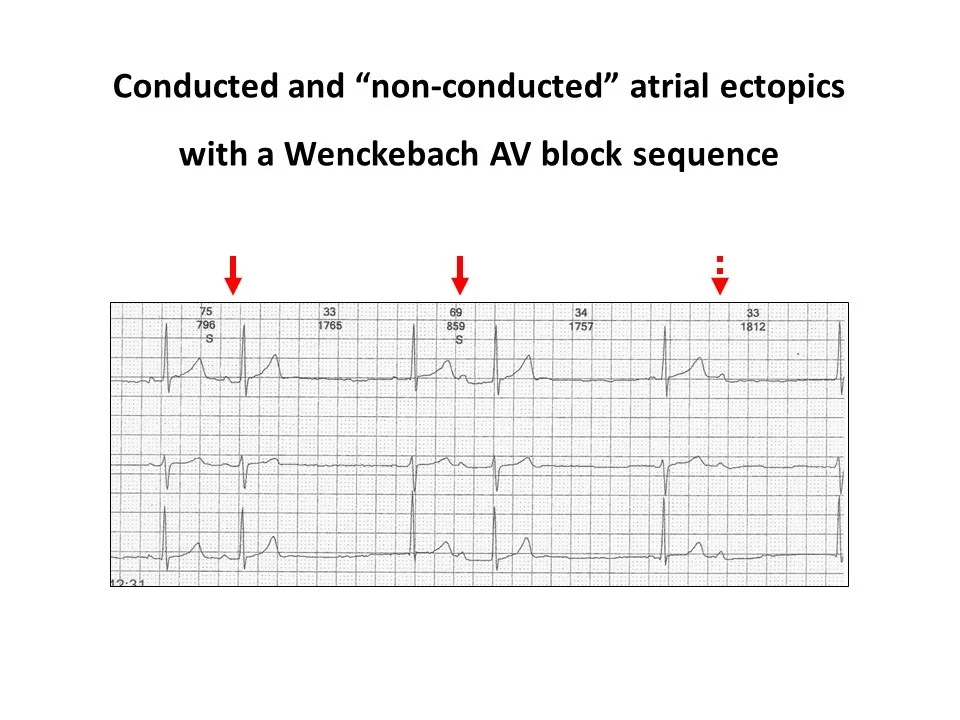

To confuse the issue; an atrial bigeminy can also have a Wenckebach sequence.

image 15.jpg

Finally here is a test case: Called a non-conducted atrial ectopic.

image 16.jpg

The answer: This is a Wenckebach sequence, but the PR prolongation is so marked that the next P wave looks like a non-conducted atrial ectopic. There is also a junctional escape beat (or is it conducted??).

So when looking at a dropped P wave:

·         Is it premature?

·         Does it look sinus?

·         Is there gradual PR prolongation?

·         Is the PR interval before the dropped beat long and following it short?

Chelsea Cunningham
